A IDC port patch pannel for CAT 6
24 Port Patch Panel (Cat6) IDC Punch Down 19 inch
24 Port Patch Panel (Cat6) IDC Punch Down 19 inch
24 Port Patch Panel (Cat6) IDC Punch Down 19 inch

24 Port Patch Panel (Cat6) IDC Punch Down 19 inch

Brand: connektgear
Code: 90-0030
Box Qty: 20
Stock: 75
(UK Mainland & stock items only). Pallet deliveries order before 12 noon.
×

Ask a question

×

Leave a review

Rating:
×

Tell a friend

Delivery Next dayDelivery
Next day from only £5.70

(UK Mainland Only)

Need help?Need help?
0121 503 0666
Discount when you order online2% Discount
When you order online

Why do you need it?

You need to connect various devices such as PC's, printers etc to a central server or switch. The Cat6 patch panel will be the heart of your network.

What does it do?

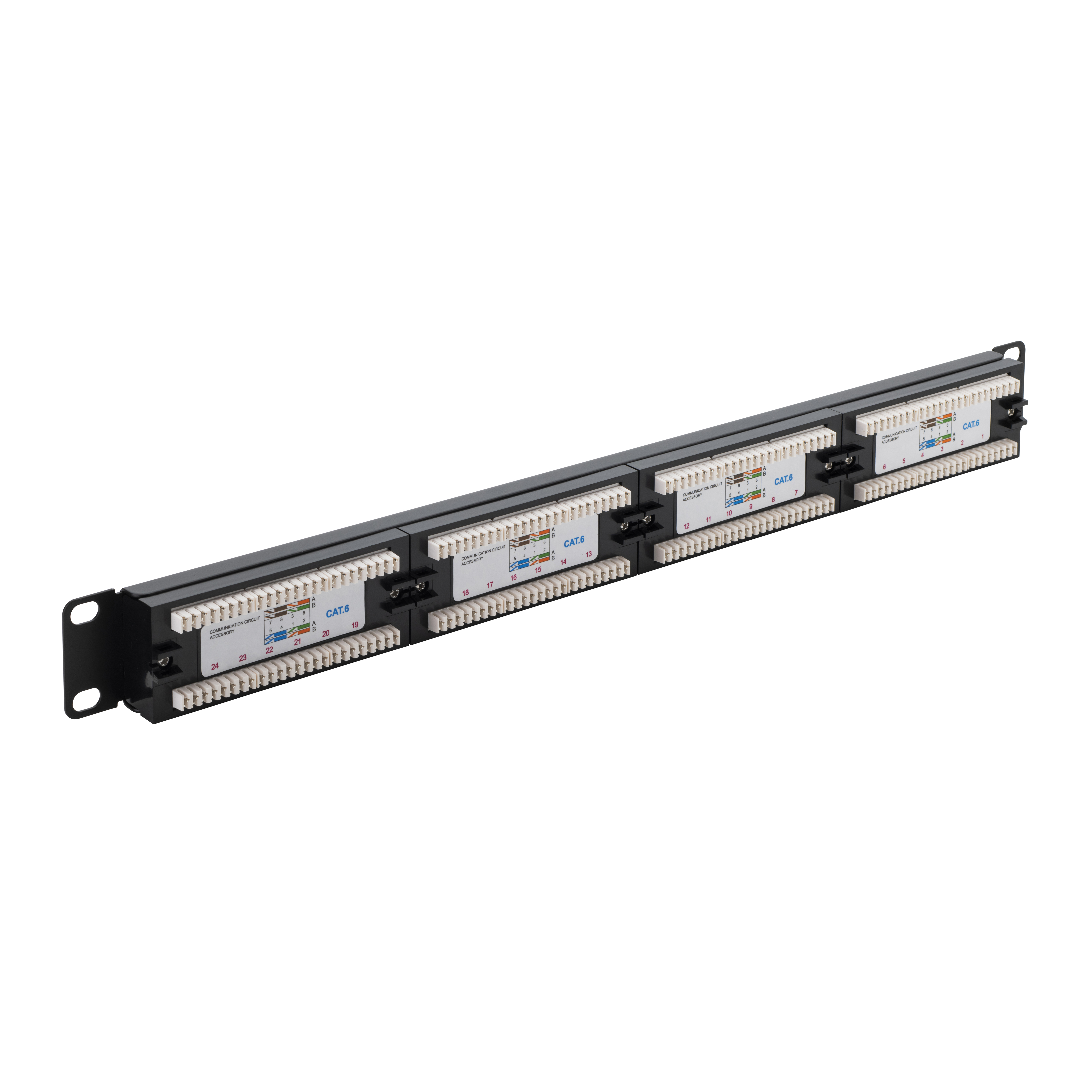

Patch panels are ideal for organising a home or office network. Plug your network cables from your PC's, printers etc into clearly labelled ports on the front of the panel. Terminate network cabling into the IDC terminals on the back of the panel using an IDC tool.

Product Details

  • Cat 6, TIA & ISO standard
  • Backward compatible with Cat 5 & Cat 5e

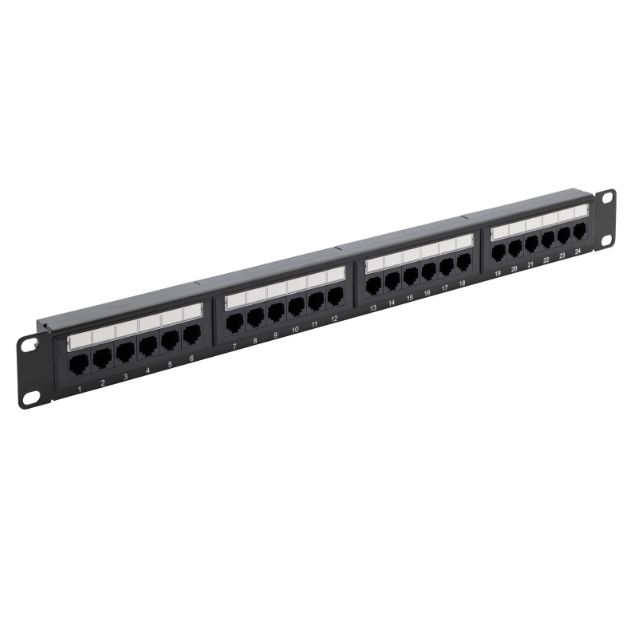

  • Screen printed port numbering on the front of the panel
  • Removable cards held in clear plastic holders on the front of the panel for personalised identification
  • Pre-printed port numbering labels on the back of the panel
  • High quality pressed steel front panel construction
  • Includes cages nuts and cable ties
  • Lifetime warranty
...better connected

Technical Specifications

  • Specification: Cat 6
  • Number of ports: 24 Ports
  • Termination style: IDC punchdown
  • IDC terminals: Feature phosphor bronze & nickel coating
  • IDC terminals contact compatibility: 22 - 26AWG solid wires
  • Port connection: RJ45 Male
  • RJ45 socket minimum life: 750 insertions
  • RJ45 socket: 50 Micron gold plated contact pins
  • Cable management system: Cable tie
  • Wiring specification: T568A & T568B
  • Shielding: No
  • Rack size: 19"
  • Dimensions: 1U, 480 x 33 x 44mm (W x D x H)
  • Operating temperature: 0°C - 70°C
  • Storage temperature: -40°C - 85°C
  • Colour: Black

Packaging Specifications

  • Packaging Type: Box
  • Packaging Dimensions: 510 x 92 x 60mm (W x D x H)
  • Packaging Material: Cardboard
  • Packaging Weight: 0.0825Kg
  • Product Weight: 0.70
  • Product & Packaging Weight: 0.70Kg
  • Carton Dimensions: 350 x 260 x 240mm
  • Carton Net Weight: 0.4Kg
  • Carton Gross Weight: 13Kg
  • Country of Origin: PR China

Whats In The Box

  • 1 x 24 Port Cat6 Patch Panel
  • 4 x Cable Ties
  • 8 x Screws
